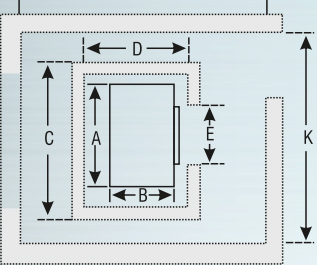

MANUAL DOOR

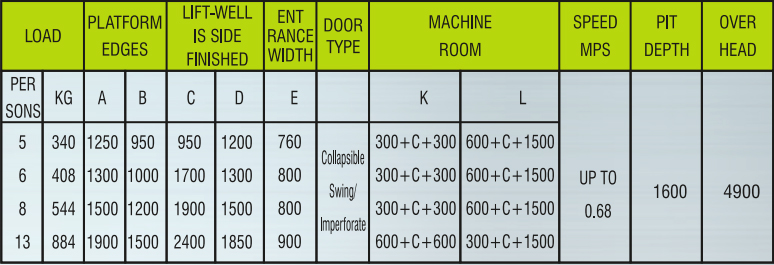

Space Requirements for Manual Door Operation Passenger Elevators

All Damnation are in mm
This is General Data, It may be Changed without notice. For more detail contact us.
All hoist way walls should be minimum 230 mm brick or 150 mm R.C.C.

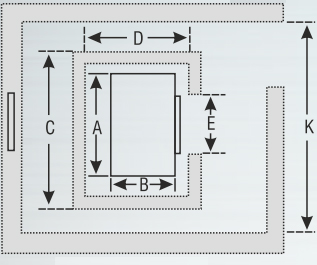

AUTO DOOR

Space Requirements for Automatic Variable Speed Collective Passenger Elevators

All Damnation are in mm
This is General Data, It may be Changed without notice. For more detail contact us.
All hoist way walls should be minimum 230 mm brick or 150 mm R.C.C.

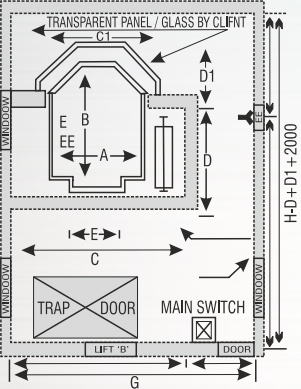

CAPSULE ELEVATOR

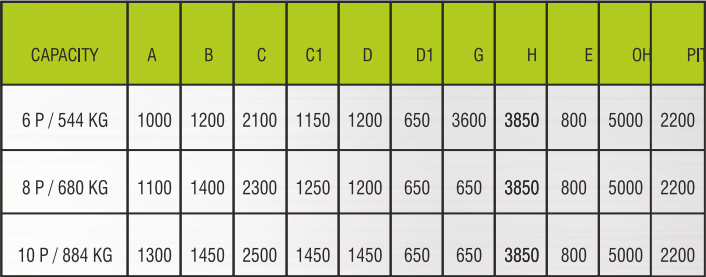

Space Requirements for Capsule Elevators

All Damnation are in mm
This is General Data, It may be Changed without notice. For more detail contact us.
All hoist way walls should be minimum 230 mm brick or 150 mm R.C.C.

Dimension

MANUAL DOOR

AUTO DOOR

CAPSULE ELEVATOR

Manufacture and Suppliers of Parts & Components of Elevators & Lift. We have an enviable list if most satisfied high profile clientele who have erected and maintained many Elevators / Lift.
